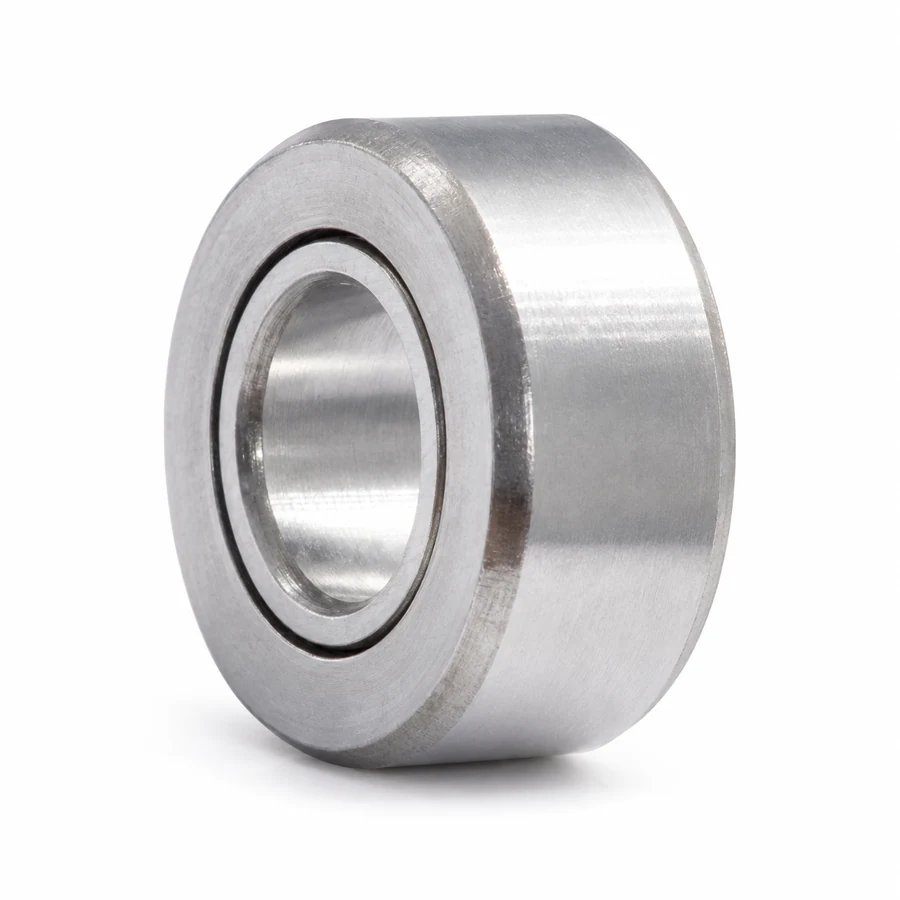

SR144TLZ1N is listed as a high-speed dental handpiece bearing under P/N GS-A6. Its current verified dimensions are 3.175 mm × 6.35 mm × 2.38 mm in ID × OD × Width order.
Verified Specifications
| Model | SR144TLZ1N |
|---|---|
| P/N | GS-A6 |
| Product type | high-speed dental handpiece bearing |
| Bore / ID | 3.175 mm |
| Outer Diameter / OD | 6.35 mm |
| Width | 2.38 mm |
| Precision Grade | P4 |
| Source speed marking | >400,000 RPM |
| Ball Material | Si3N4 Ceramic |
| Cage Material | Torlon |
| Shield Configuration | One Shield |
| Outer Ring Profile | Smooth |
What Distinguishes SR144TLZ1N
The current SKU record identifies a smooth outer-ring profile, Si3N4 Ceramic balls, a Torlon cage and a one-shield configuration. These fields distinguish SR144TLZ1N within our current high-speed bearing records; they do not by themselves confirm handpiece compatibility.
Identification Before Ordering
Confirm the exact SR144TLZ1N marking, P/N GS-A6, Bore / ID, Outer Diameter / OD and width, the smooth outer-ring profile. Also compare the shield or open configuration and any flange, groove or step visible on the removed bearing. A shared dimension does not establish interchangeability. Compatibility must be confirmed for the exact handpiece and turbine or assembly version.
Information to Send for RFQ Review
Send clear front, side and marking photos of the removed bearing, the measured ID, OD and width, and the rotor, turbine or assembly reference when available. We can then review the submitted information for identification and quotation.
Technical resources: dental bearing products, high-speed bearing hub, SR144 bearing guide, bearing size chart, bearing cross-reference and bearing identification.
Request Bearing Identification or a Technical Quote
No specific handpiece compatibility is claimed on this page. Confirm fit from the exact model, dimensions and construction evidence before ordering.
Specification Source and Limits
Product reference: GS-A6. Source: manufacturer product catalog supplied to DENTORQUE, page 4, panel R2C2.
The source file is titled 轴承2026产品资料.pdf. A controlled revision and publication date are not stated in the supplied catalog; the year in its filename is not an issue-date verification.
Catalog markings are source information, not an independent test report or confirmation of compatibility with a specific handpiece. Exact geometry, assembly version and operating requirements still need to be confirmed for your application.
For questions about this source, contact DENTORQUE and quote GS-A6, page 4, panel R2C2. Read our fitment evidence standard before treating a candidate as a confirmed replacement.
